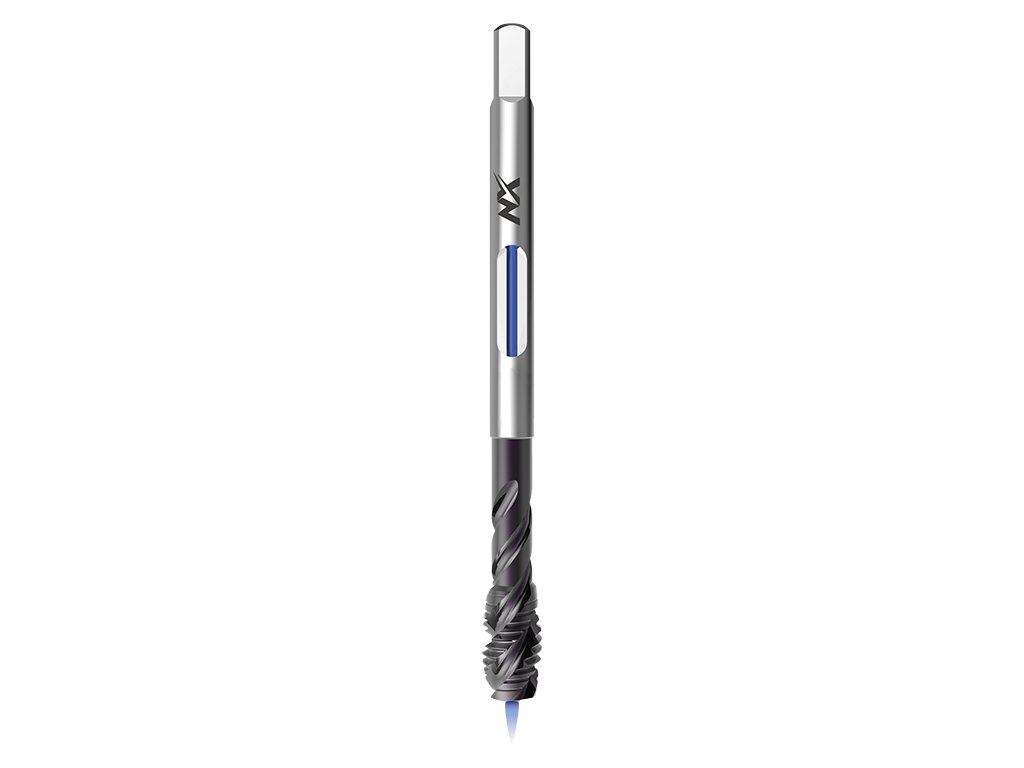

4220NXIKZ - Machine tap with right-hand spiral flutes 50°

Code: 043036324120000
from €191,53 from €158,29 excl. VAT

Choose variant

Catalogue number: 4220NXIKZ

High performance machine tap with 50° spiral flutes and axial cooling, metric, DIN 376, Balinit Hardlube coated, suitable for universal use.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 50°Spiral flute angle:   50°

Cooling method: Internal axial coolant supplyCooling method:   Internal axial coolant supply

Hole type: Blind hole (thread length < 2,5 d1)Hole type:   Blind hole (thread length < 2,5 d1)


Detailed information

Variant: M 12x1,75 6HX
In stock (4 pcs) | 043036324120000
€191,53
€158,29 excl. VAT
Variant: M 16x2 6HX
In stock (4 pcs) | 043036324160000
€270,11
€223,23 excl. VAT
Variant: M 20x2,5 6HX
In stock (2 pcs) | 043036324200000
€407,50
€336,78 excl. VAT

Product detailed description

Catalogue number: 4220NXIKZ

High performance machine tap with 50° spiral flutes and axial cooling, metric, DIN 376, Balinit Hardlube coated, suitable for universal use.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 50°Spiral flute angle:   50°

Cooling method: Internal axial coolant supplyCooling method:   Internal axial coolant supply

Hole type: Blind hole (thread length < 2,5 d1)Hole type:   Blind hole (thread length < 2,5 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm218-22
P1.2Plain cast steels <500N/mm218-22
P2.1Free-cutting steels <800N/mm210-12
P2.2Structural steels <800N/mm210-12
P2.3Plain cast steels <800N/mm210-12
P3.1Case hardened and nitriding steels <1200N/mm210-12
P3.2Heat-treated steels <1200N/mm210-12
P3.3Tool steels <1200N/mm210-12
P4.1High-alloyed steels <1400N/mm210-12
P4.2Heat-treated steels <1400N/mm210-12
M5.1Stainless steels 450-800N/mm210-12
M5.2Stainless steels 600-1000N/mm210-12
K6.1Grey cast iron12-18
K6.2Spher. graphite and mall. cast iron12-18
N7.1Unalloyed aluminium26-32
N8.1Aluminium alloysSi<10%12-18
N8.2Aluminium alloysSi<10%12-18
N9.1Pure copper18-22
N10.1Short chipping copper alloys10-12
N10.2Long chipping copper alloys10-12
N11.1Zinc and zinc alloys10-12



Dimensions:

4220NXIKZ: kreslenka
d1Ptoll1l2d2ahole
M 121,756HX110189710,2
M 1626HX1102012914
M 202,56HX14025161217,5

Additional parameters

Category: Machine taps
Coating: HL
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper, High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
Product line: NX Precision Taps Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6HX
