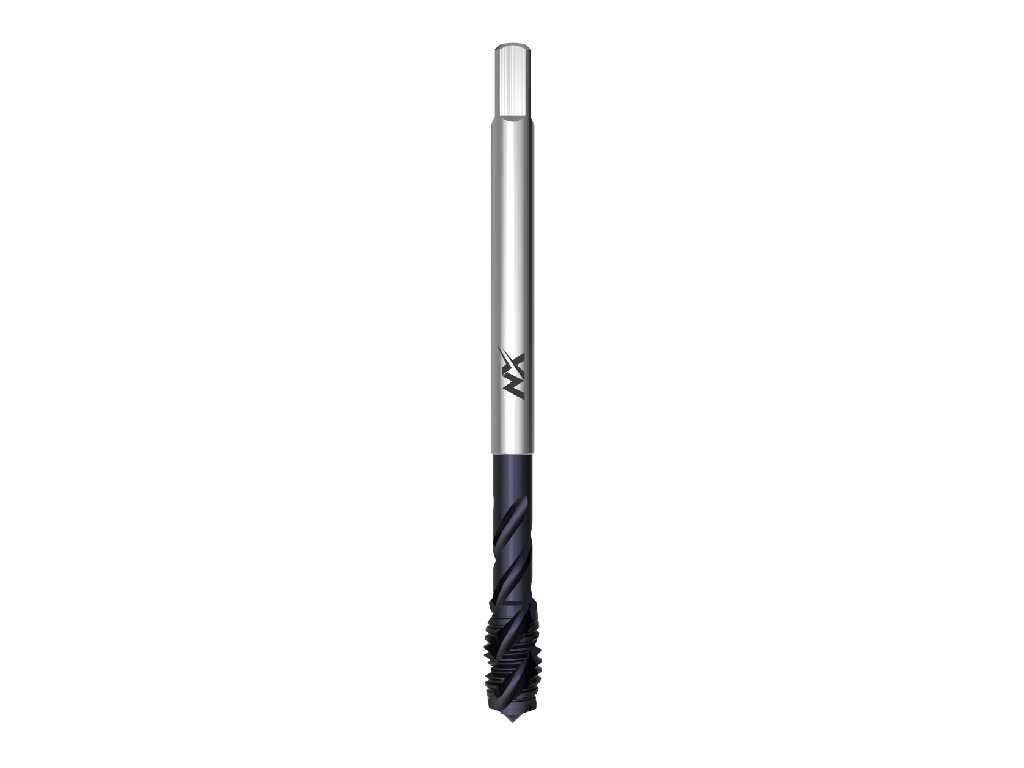

4270NXFX - Machine tap with right-hand spiral flutes 45°
Code: 044036332120000
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 044036332120000
EAN: 8595111995373
€96,97
€80,14
excl. VAT
Variant: M 14x2 6H
In stock
(>10 pcs)
| 044036332140000
EAN: 8595111995380
€121,35
€100,29
excl. VAT
Variant: M 16x2 6H
In stock
(>10 pcs)
| 044036332160000
EAN: 8595111995397
€133,16
€110,05
excl. VAT
Variant: M 18x2,5 6H
In stock
(>10 pcs)
| 044036332180000
EAN: 8595111995403
€190,67
€157,58
excl. VAT
Variant: M 20x2,5 6H
In stock
(>10 pcs)
| 044036332200000
EAN: 8595111995410
€198,52
€164,07
excl. VAT
Product detailed description
Catalogue number: 4270NXFX
Ultra-high-performance machine tap from the premium FeniX series for metric threads with a spiral flute 45°, DIN 376, with TIGAAN next-gen coating, featuring special geometry designed for top performance when used in stainless steel with a strength of up to 1000 N/mm2. Can also be used in other materials (see table).
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Super high speed steel
Coating: TIG
Tap standard: DIN 376
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 45°
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 15-18 |
| P3.2 | Heat-treated steels <1200N/mm2 | 15-18 |
| P3.3 | Tool steels <1200N/mm2 | 15-18 |
| M5.1 | Stainless steels 450-800N/mm2 | 10-12 |
| M5.2 | Stainless steels 600-1000N/mm2 | 10-12 |
| N9.1 | Pure copper | 12-15 |
| N10.2 | Long chipping copper alloys | 10-12 |
* Recommended materials for best performance
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | ⦾ | ⦾* |
|---|---|---|---|---|---|---|---|---|
| M 12 | 1,75 | 6H | 110 | 18 | 9 | 7 | 10,2 | 10,3 |
| M 14 | 2 | 6H | 110 | 20 | 11 | 9 | 12 | 12,1 |
| M 16 | 2 | 6H | 110 | 20 | 12 | 9 | 14 | 14,1 |
| M 18 | 2,5 | 6H | 125 | 25 | 14 | 11 | 15,5 | 15,6 |
| M 20 | 2,5 | 6H | 140 | 25 | 16 | 12 | 17,5 | 17,6 |
⦾ - hole diameter
⦾* - hole diameter for recommended materials
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TIG |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NX FeniX Product Line |
| Standard: | DIN 376 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
