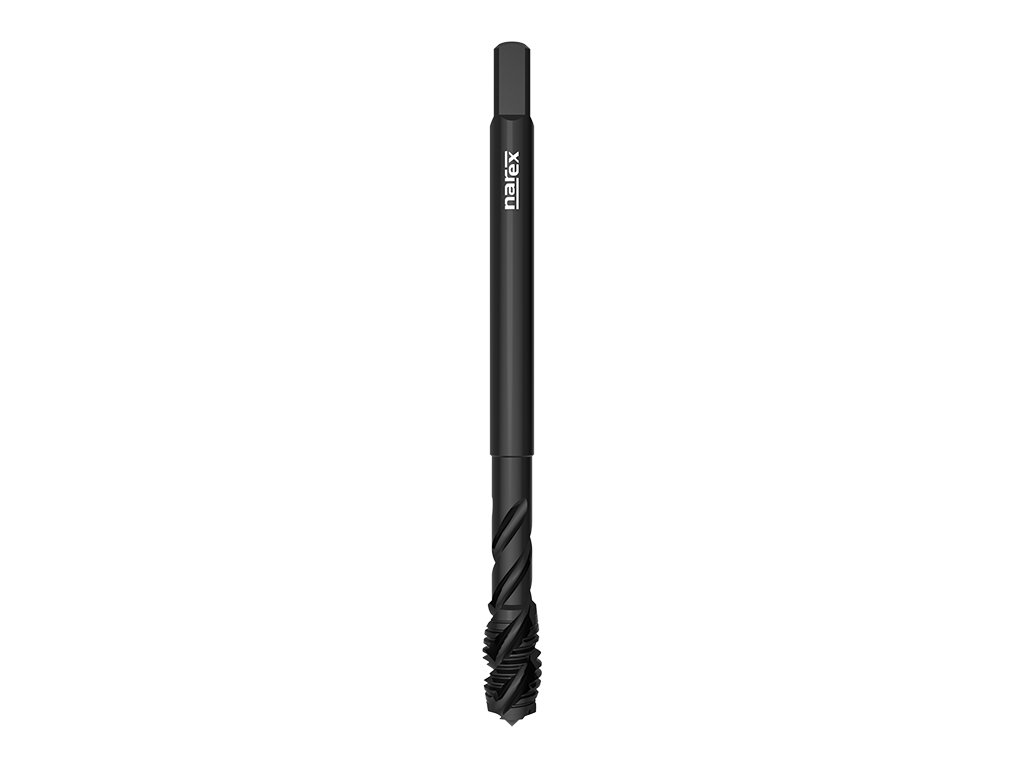

    4290EG - Machine tap with right-hand spiral flutes 40°

    Code: 041937332100000
    4290EG - Machine tap with right-hand spiral flutes 40°
    from €32,03 from €26,47 excl. VAT

    Choose variant

    Catalogue number: 4290EG

    Tap for wire thread inserts with spiral flutes, metric, DIN 40435, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Thread EG-M: ISO Metric coarse thread for wire thread insertsThread EG-M:   ISO Metric coarse thread for wire thread inserts

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 8140/2Thread standard:   DIN 8140/2

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 40435Tap standard:   DIN 40435

    Thread tolerance: ISO 2 - 6H modThread tolerance:   ISO 2 - 6H mod

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: EG-M 10x1,5 6H mod
    In stock | 041937332100000
    €32,03
    €26,47 excl. VAT
    Variant: EG-M 12x1,75 6H mod
    In stock | 041937332120000
    €37,43
    €30,93 excl. VAT
    Variant: EG-M 14x2 6H mod
    In stock | 041937332140000
    €46,71
    €38,60 excl. VAT
    Variant: EG-M 16x2 6H mod
    Currently unavailable | 041937332160000
    €51,20
    €42,31 excl. VAT

    Product detailed description

    Catalogue number: 4290EG

    Tap for wire thread inserts with spiral flutes, metric, DIN 40435, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Features:

    Thread EG-M: ISO Metric coarse thread for wire thread insertsThread EG-M:   ISO Metric coarse thread for wire thread inserts

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 8140/2Thread standard:   DIN 8140/2

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 40435Tap standard:   DIN 40435

    Thread tolerance: ISO 2 - 6H modThread tolerance:   ISO 2 - 6H mod

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm23-5
    M5.1Stainless steels 450-800N/mm24-7
    M5.2Stainless steels 600-1000N/mm23-5



    Dimensions:

    4290EG: kreslenka
    d1Ptoll1l2d2ahole
    EG-M 101,56H mod100139710,4
    EG-M 121,756H mod1102011912,5
    EG-M 1426H mod1102012914,5
    EG-M 1626H mod12525141116,5

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
    Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 40435
    Thread type: ISO metric coarse thread for screw thread insert
    Tolerance: 6H mod
