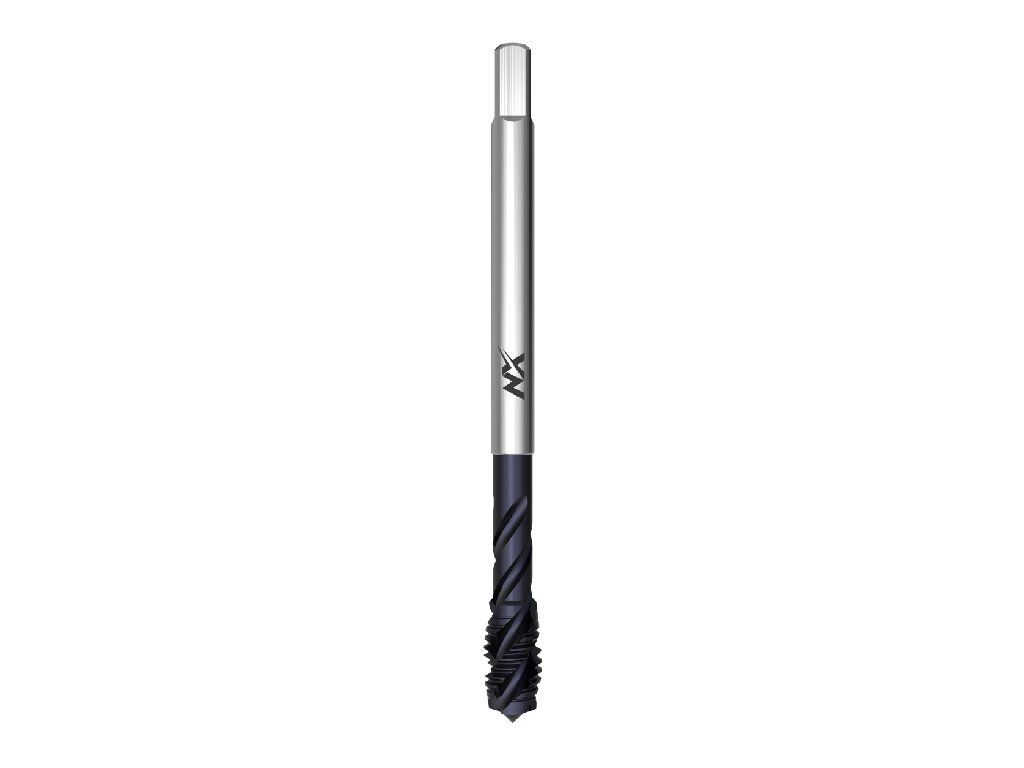

4320NXFX - Machine tap with right-hand spiral flutes 45°
Code: 044036382120000
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 044036382120000
EAN: 8595111995489
€99,87
€82,54
excl. VAT
Variant: M 14x2 6H
In stock
(>10 pcs)
| 044036382140000
EAN: 8595111995496
€124,99
€103,30
excl. VAT
Variant: M 16x2 6H
In stock
(>10 pcs)
| 044036382160000
EAN: 8595111995502
€137,15
€113,35
excl. VAT
Variant: M 18x2,5 6H
In stock
(>10 pcs)
| 044036382180000
EAN: 8595111995519
€196,40
€162,31
excl. VAT
Variant: M 20x2,5 6H
In stock
(>10 pcs)
| 044036382200000
EAN: 8595111995526
€204,48
€168,99
excl. VAT
Product detailed description
Catalogue number: 4320NXFX
High performance machine tap with spiral flutes, metric, DIN 376, TIGAAN coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Super high speed steel
Coating: TIG
Tap standard: DIN 376
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 45°
Hole type: Blind hole (thread length < 2,5 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 10-15 |
| P3.2 | Heat-treated steels <1200N/mm2 | 10-15 |
| P3.3 | Tool steels <1200N/mm2 | 8-12 |
| M5.1 | Stainless steels 450-800N/mm2 | 8-10 |
| M5.2 | Stainless steels 600-1000N/mm2 | 8-10 |
| N9.1 | Pure copper | 10-12 |
| N10.2 | Long chipping copper alloys | 10-12 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 12 | 1,75 | 6H | 110 | 18 | 9 | 7 | 10,2 |
| M 14 | 2 | 6H | 110 | 20 | 11 | 9 | 12 |
| M 16 | 2 | 6H | 110 | 20 | 12 | 9 | 14 |
| M 18 | 2,5 | 6H | 125 | 25 | 14 | 11 | 15,5 |
| M 20 | 2,5 | 6H | 140 | 25 | 16 | 12 | 17,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TIG |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NX FeniX Product Line |
| Standard: | DIN 376 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
