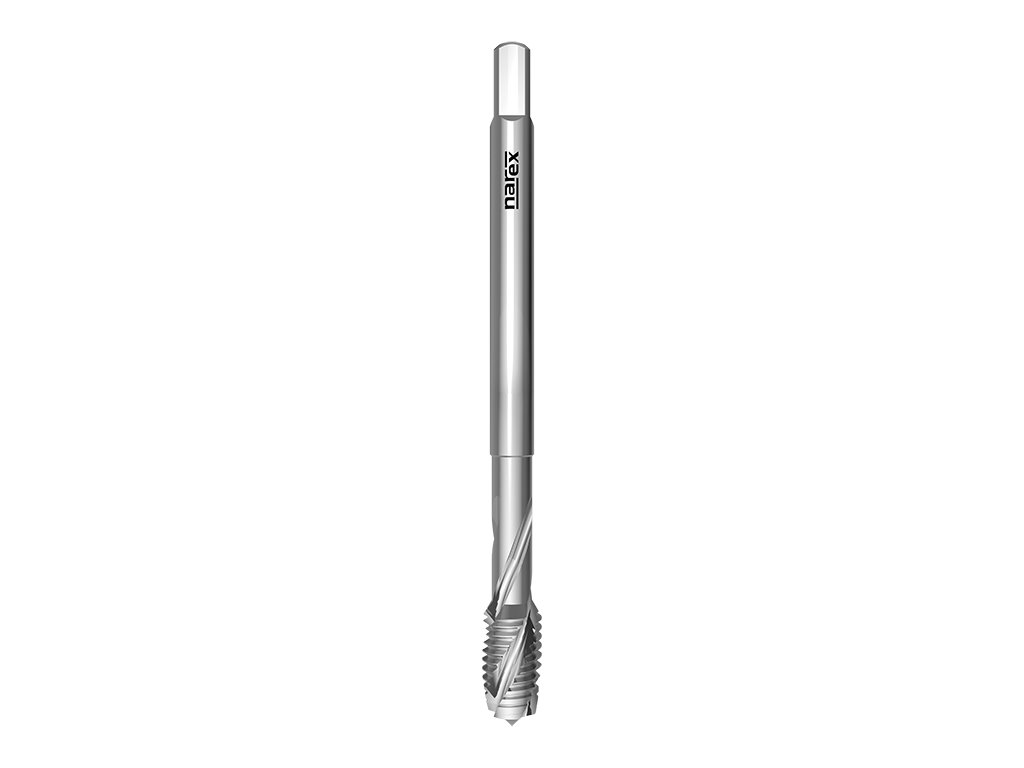

4400 - Machine tap with right-hand spiral flutes 15°

Code: 041531312030000
from €12,60 from €10,41 excl. VAT

Choose variant

Catalogue number: 4400

Machine tap with spiral flute, metric and metric fine, DIN 376, DIN 374 suitable for structural and heat-treated steels in natural condition and short chipping copper alloys.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 15°Spiral flute angle:   15°

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)


Detailed information

Variant: M 3x0,5 6H
In stock | 041531312030000
€12,60
€10,41 excl. VAT
Variant: M 4x0,7 6H
In stock | 041531312040000
€12,80
€10,58 excl. VAT
Variant: M 5x0,8 6H
Currently unavailable | 041531312050000
€12,93
€10,69 excl. VAT
Variant: M 6x1 6H
Currently unavailable | 041531312060000
€12,93
€10,69 excl. VAT
Variant: M 8x1,25 6H
Currently unavailable | 041531312080000
€14,45
€11,94 excl. VAT
Variant: M 10x1,5 6H
In stock | 041531312100000
€17,87
€14,77 excl. VAT
Variant: M 12x1,75 6H
Currently unavailable | 041531312120000
€20,88
€17,26 excl. VAT
Variant: M 14x2 6H
In stock | 041531312140000
€26,16
€21,62 excl. VAT
Variant: M 16x2 6H
In stock | 041531312160000
€28,82
€23,82 excl. VAT
Variant: M 18x2,5 6H
In stock | 041531312180000
€41,49
€34,29 excl. VAT
Variant: M 20x2,5 6H
Currently unavailable | 041531312200000
€42,93
€35,48 excl. VAT
Variant: M 22x2,5 6H
In stock | 041531312220000
€55,54
€45,90 excl. VAT
Variant: M 24x3 6H
In stock | 041531312240000
€54,66
€45,17 excl. VAT

Product detailed description

Catalogue number: 4400

Machine tap with spiral flute, metric and metric fine, DIN 376, DIN 374 suitable for structural and heat-treated steels in natural condition and short chipping copper alloys.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 15°Spiral flute angle:   15°

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)




Machined materials:

GroupMachined materialCutting speed
P2.2Structural steels <800N/mm28-10
N10.1Short chipping copper alloys10-15



Dimensions:

4400: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5652,2-2,5
M 40,76H6372,82,13,3
M 50,86H7083,52,74,2
M 616H80104,53,45
M 81,256H901364,96,8
M 101,56H1001575,58,5
M 121,756H110189710,2
M 1426H1102011912
M 1626H1102012914
M 182,56H12525141115,5
M 202,56H14025161217,5
M 222,56H140251814,519,5
M 2436H160301814,521

Additional parameters

Category: Machine taps
Coating: -
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <800N/mm2, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN 374, DIN 376
Thread type: Metric ISO Thread, Metric ISO Fine Thread
Tolerance: 6H
