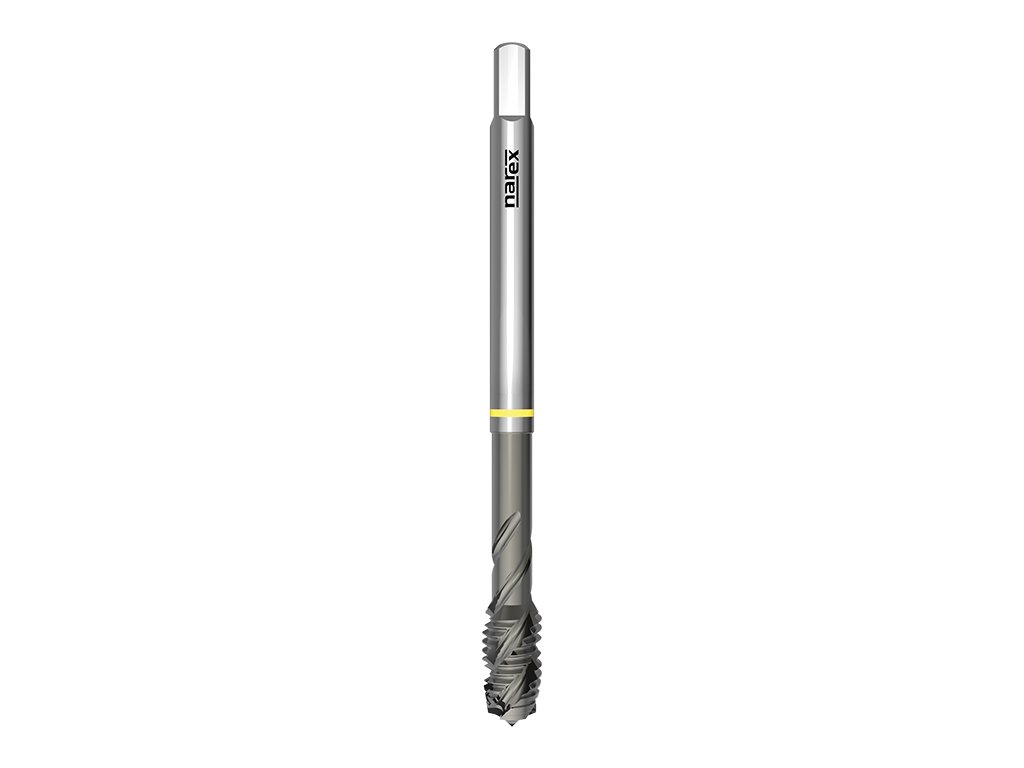

4670 - Machine tap with right-hand spiral flutes 40°

Code: 041536336030000
from €28,82 from €23,82 excl. VAT

Choose variant

Catalogue number: 4670

Machine tap with spiral flute, metric, DIN 376, AluSpeed coating, suitable for aluminium alloys with Si>10 %



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type AL: Tap for unalloyed aluminiumType AL:   Tap for unalloyed aluminium

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: AluSpeedCoating:   AluSpeed

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 3x0,5 6H
In stock | 041536336030000
€28,82
€23,82 excl. VAT
Variant: M 4x0,7 6H
In stock | 041536336040000
€29,38
€24,28 excl. VAT
Variant: M 5x0,8 6H
In stock | 041536336050000
€30,54
€25,24 excl. VAT
Variant: M 6x1 6H
In stock | 041536336060000
€30,54
€25,24 excl. VAT
Variant: M 8x1,25 6H
In stock | 041536336080000
€33,69
€27,84 excl. VAT
Variant: M 10x1,5 6H
In stock | 041536336100000
€41,91
€34,64 excl. VAT
Variant: M 12x1,75 6H
In stock | 041536336120000
€48,88
€40,40 excl. VAT
Variant: M 14x2 6H
In stock | 041536336140000
€60,88
€50,31 excl. VAT
Variant: M 16x2 6H
In stock | 041536336160000
€67,17
€55,51 excl. VAT
Variant: M 18x2,5 6H
In stock | 041536336180000
€96,41
€79,68 excl. VAT
Variant: M 20x2,5 6H
In stock | 041536336200000
€99,78
€82,46 excl. VAT

Product detailed description

Catalogue number: 4670

Machine tap with spiral flute, metric, DIN 376, AluSpeed coating, suitable for aluminium alloys with Si>10 %



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type AL: Tap for unalloyed aluminiumType AL:   Tap for unalloyed aluminium

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: AluSpeedCoating:   AluSpeed

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
N8.2Aluminium alloysSi<10%12-20



Dimensions:

4670: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5652,22,5
M 40,76H6372,82,13,3
M 50,86H7083,52,74,2
M 616H80104,53,45
M 81,256H901364,96,8
M 101,56H1001575,58,5
M 121,756H110189710,2
M 1426H1102011912
M 1626H1102012914
M 182,56H12525141115,5
M 202,56H14025161217,5

Additional parameters

Category: Machine taps
Coating: ALS
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Aluminium alloysSi<10%
Product line: NAREX Zdanice Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
