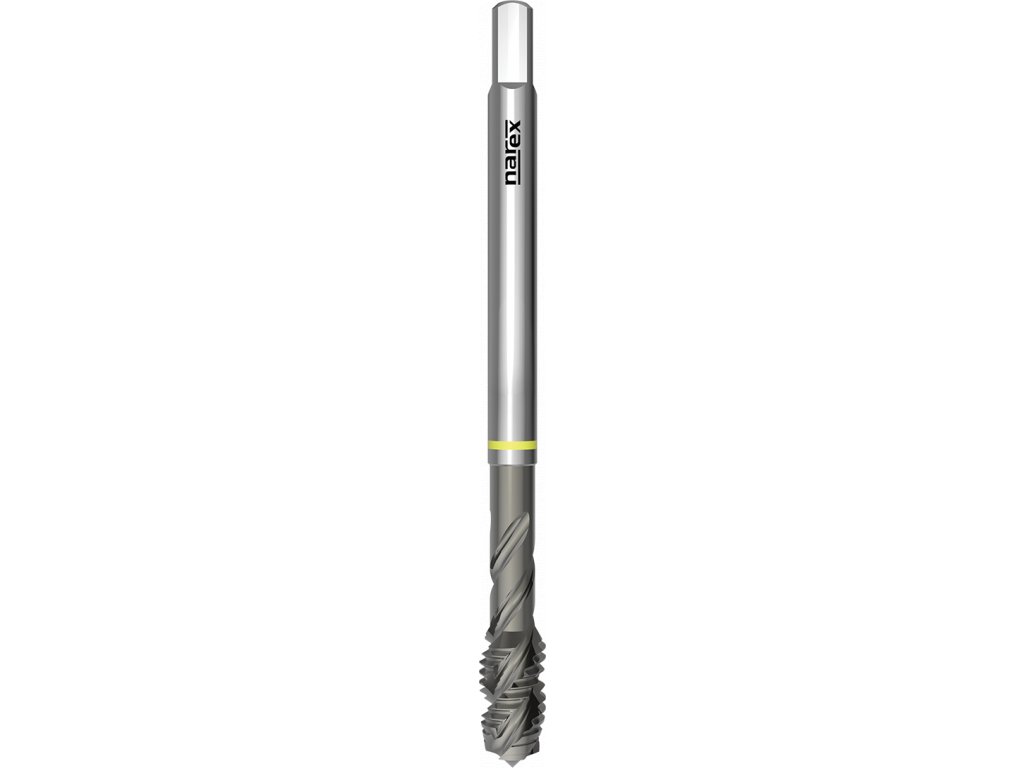

4720 - Machine tap with right-hand spiral flutes 45°

Code: 041536360030000
from €20,95 from €17,31 excl. VAT

Choose variant

Catalogue number: 4720

Machine tap with spiral flute, metric, DIN 376, AluSpeed coated, suitable for unalloyed aluminium



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type AL: Tap for unalloyed aluminiumType AL:   Tap for unalloyed aluminium

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: AluSpeedCoating:   AluSpeed

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 45°Spiral flute angle:   45°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 3x0,5 6H
In stock | 041536360030000
€20,95
€17,31 excl. VAT
Variant: M 4x0,7 6H
In stock | 041536360040000
€21,16
€17,49 excl. VAT
Variant: M 5x0,8 6H
In stock | 041536360050000
€21,63
€17,88 excl. VAT
Variant: M 6x1 6H
In stock | 041536360060000
€21,63
€17,88 excl. VAT
Variant: M 8x1,25 6H
In stock | 041536360080000
€24,18
€19,98 excl. VAT
Variant: M 10x1,5 6H
In stock | 041536360100000
€30
€24,79 excl. VAT
Variant: M 12x1,75 6H
In stock | 041536360120000
€34,79
€28,75 excl. VAT
Variant: M 14x2 6H
In stock | 041536360140000
€43,41
€35,88 excl. VAT
Variant: M 16x2 6H
In stock | 041536360160000
€48,06
€39,72 excl. VAT
Variant: M 18x2,5 6H
In stock | 041536360180000
€69,43
€57,38 excl. VAT
Variant: M 20x2,5 6H
In stock | 041536360200000
€71,35
€58,97 excl. VAT

Product detailed description

Catalogue number: 4720

Machine tap with spiral flute, metric, DIN 376, AluSpeed coated, suitable for unalloyed aluminium



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type AL: Tap for unalloyed aluminiumType AL:   Tap for unalloyed aluminium

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: AluSpeedCoating:   AluSpeed

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 45°Spiral flute angle:   45°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
N7.1Unalloyed aluminium15-35



Dimensions:

4720: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5652,22,5
M 40,76H6372,82,13,3
M 50,86H7083,52,74,2
M 616H80104,53,45
M 81,256H901364,96,8
M 101,56H1001575,58,5
M 121,756H110189710,2
M 1426H1102011912
M 1626H1102012914
M 182,56H12525141115,5
M 202,56H14025161217,5

Additional parameters

Category: Machine taps
Coating: ALS
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
Machined material: Unalloyed aluminium
Product line: NAREX Zdanice Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
