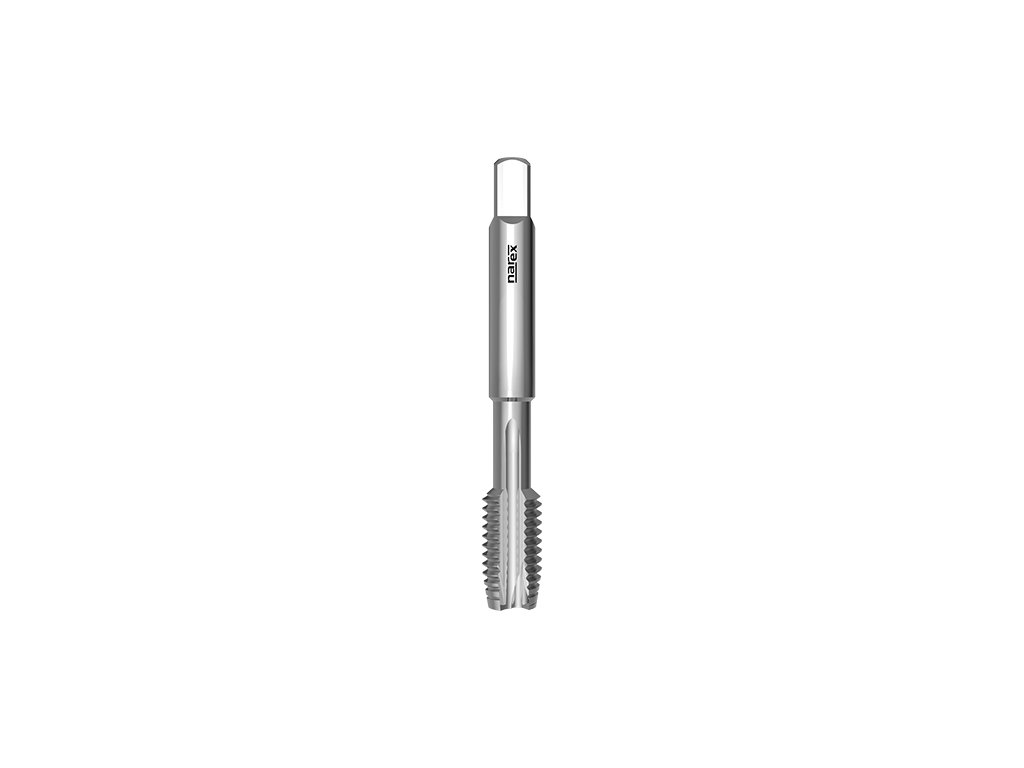

6350 - Machine tap with straight flutes and spiral point
Code: 041541052030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 041541052030000
EAN: 8595111961507
€11
€9,09
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 041541052040000
EAN: 8595111961538
€11,37
€9,40
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 041541052050000
EAN: 8595111961569
€11,97
€9,89
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 041541052060000
EAN: 8595111961583
€11,97
€9,89
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 041541052080000
EAN: 8595111961606
€13,77
€11,38
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 041541052100000
EAN: 8595111961637
€16,61
€13,73
excl. VAT
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 041541052120000
EAN: 8595111961668
€20,95
€17,31
excl. VAT
Variant: M 14x2 6H
In stock
(>10 pcs)
| 041541052140000
EAN: 8595111961705
€26,20
€21,65
excl. VAT
Variant: M 16x2 6H
In stock
(>10 pcs)
| 041541052160000
EAN: 8595111961750
€29,63
€24,49
excl. VAT
Variant: M 18x2,5 6H
In stock
(>10 pcs)
| 041541052180000
EAN: 8595111961804
€41,70
€34,46
excl. VAT
Variant: M 20x2,5 6H
In stock
(>10 pcs)
| 041541052200000
EAN: 8595111961828
€44,31
€36,62
excl. VAT
Variant: M 22x2,5 6H
In stock
(>10 pcs)
| 041541052220000
EAN: 8595111961842
€61,82
€51,09
excl. VAT
Variant: M 24x3 6H
In stock
(>10 pcs)
| 041541052240000
EAN: 8595111961866
€58,54
€48,38
excl. VAT
Variant: M 27x3 6H
In stock
(>10 pcs)
| 041541052270000
EAN: 8595111961897
€78,06
€64,51
excl. VAT
Variant: M 30x3,5 6H
In stock
(>10 pcs)
| 041541052300000
EAN: 8595111961910
€94,53
€78,12
excl. VAT
Product detailed description
Catalogue number: 6350
Machine tap with straight flutes and spiral point, metric, ISO529, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Tap standard: ISO 529
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 5-8 |
| P1.2 | Plain cast steels <500N/mm2 | 6-10 |
| P2.1 | Free-cutting steels <800N/mm2 | 10-14 |
| P2.2 | Structural steels <800N/mm2 | 10-14 |
| P2.3 | Plain cast steels <800N/mm2 | 10-14 |
| K6.2 | Spher. graphite and mall. cast iron | 4-7 |
| N8.1 | Aluminium alloysSi<10% | 14-20 |
| N8.2 | Aluminium alloysSi<10% | 12-15 |
| N10.1 | Short chipping copper alloys | 12-20 |

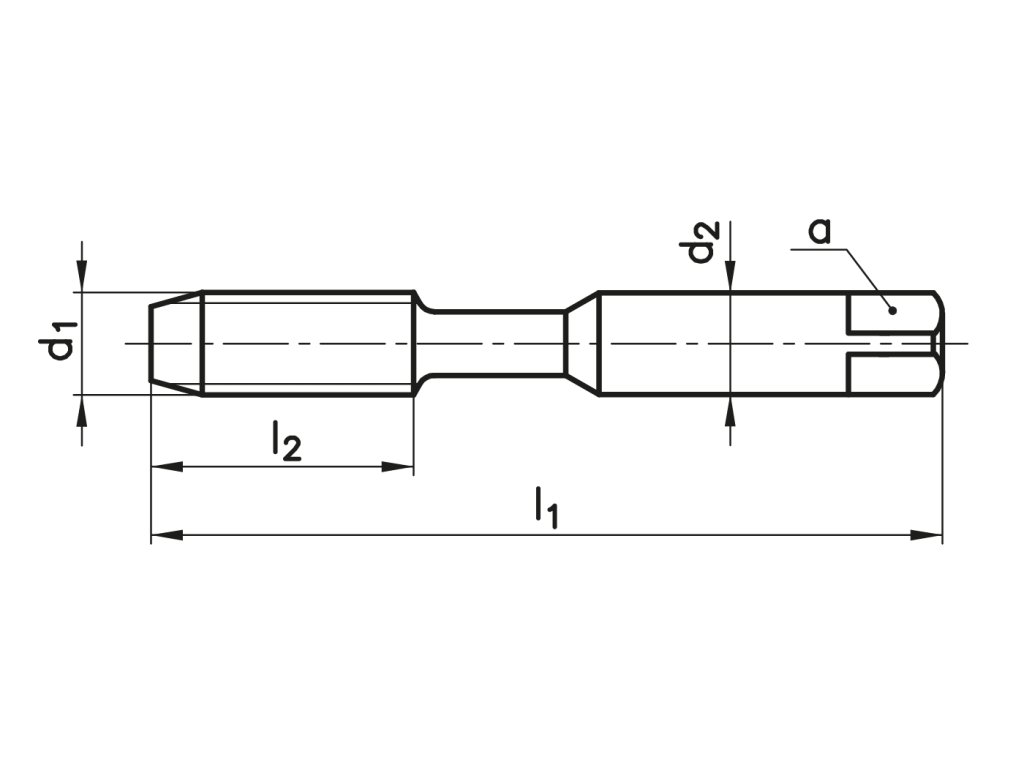

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 48 | 11 | 3,15 | 2,5 | 2,5 |
| M 4 | 0,7 | 6H | 53 | 13 | 4 | 3,15 | 3,3 |
| M 5 | 0,8 | 6H | 58 | 16 | 5 | 4 | 4,2 |
| M 6 | 1 | 6H | 66 | 19 | 6,3 | 5 | 5 |
| M 8 | 1,25 | 6H | 72 | 22 | 8 | 6,3 | 6,8 |
| M 10 | 1,5 | 6H | 80 | 24 | 10 | 8 | 8,5 |
| M 12 | 1,75 | 6H | 89 | 29 | 9 | 7,1 | 10,2 |
| M 14 | 2 | 6H | 95 | 30 | 11,2 | 9 | 12 |
| M 16 | 2 | 6H | 102 | 32 | 12,5 | 10 | 14 |
| M 18 | 2,5 | 6H | 112 | 37 | 14 | 11,2 | 15,5 |
| M 20 | 2,5 | 6H | 112 | 37 | 14 | 11,2 | 17,5 |
| M 22 | 2,5 | 6H | 118 | 38 | 16 | 12,5 | 19,5 |
| M 24 | 3 | 6H | 130 | 45 | 18 | 14 | 21 |
| M 27 | 3 | 6H | 135 | 45 | 20 | 16 | 24 |
| M 30 | 3,5 | 6H | 138 | 48 | 20 | 16 | 26,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | - |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys |
| Product line: | NAREX Zdanice Product Line |
| Standard: | ISO 529 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
