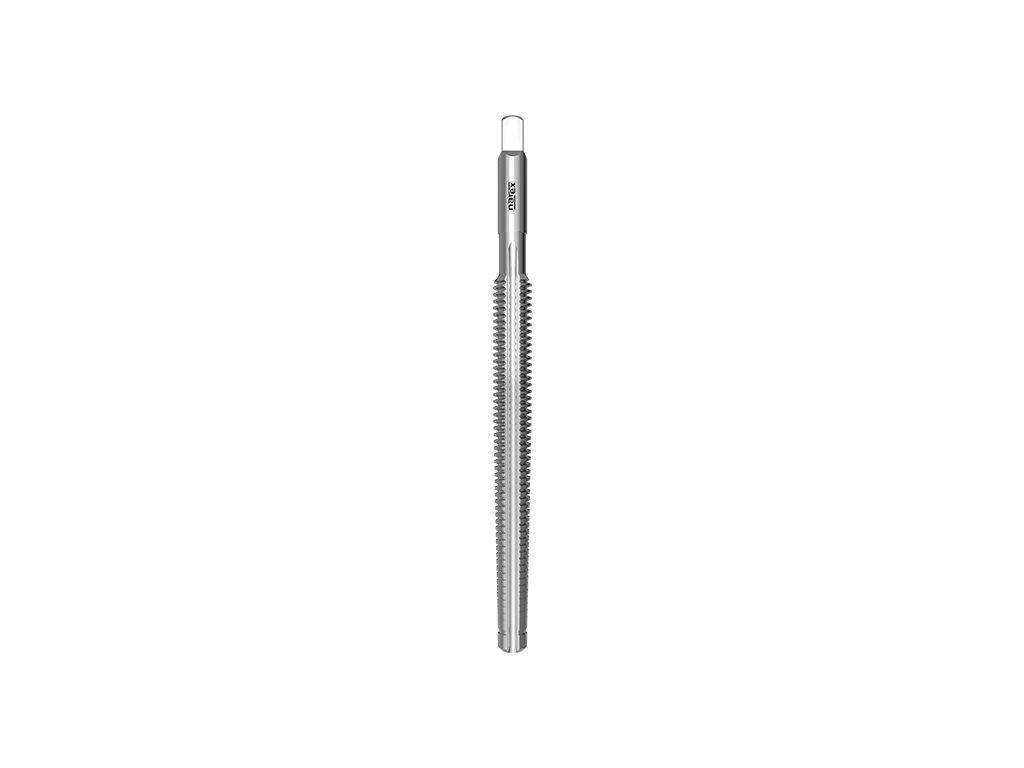

    5706 - Nut tap

    Code: 041526500103000
    5706 - Nut tap
    from €203,04 from €167,80 excl. VAT

    Choose variant

    Catalogue number: 5706

    Nut tap, trapezoidal thread according DIN 103, suitable for structural steels, plain cast steels and free cutting steels



    Thread Tr: ISO Metric trapezoidal coarse threadThread Tr:   ISO Metric trapezoidal coarse thread

    Profile sketch: 30°Profile sketch:   30°

    Thread standard: DIN 103Thread standard:   DIN 103

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: High speed steel HSSTap material:   High speed steel HSS

    Tap standard: NAREXTap standard:   NAREX

    Thread tolerance: ISO - 7HThread tolerance:   ISO - 7H

    Chamfer: Length 0,7 l2Chamfer:   Length 0,7 l2

    Hole type: Through hole (thread length L < 0,8xd1)Hole type:   Through hole (thread length L < 0,8xd1)


    Detailed information

    Variant: Tr 10x3 7H
    In stock (>10 pcs) | 041526500103000
    €203,04
    €167,80 excl. VAT
    Variant: Tr 12x3 7H
    In stock (>10 pcs) | 041526500123000
    €216,59
    €179 excl. VAT
    Variant: Tr 14x3 7H
    In stock (>10 pcs) | 041526500143000
    €235,77
    €194,85 excl. VAT
    Variant: Tr 16x4 7H
    In stock (>10 pcs) | 041526500164000
    €274,31
    €226,70 excl. VAT
    Variant: Tr 18x4 7H
    In stock (3 pcs) | 041526500184000
    €295,78
    €244,45 excl. VAT
    Variant: Tr 20x4 7H
    In stock (>10 pcs) | 041526500204000
    €313,21
    €258,85 excl. VAT

    Product detailed description

    Catalogue number: 5706

    Nut tap, trapezoidal thread according DIN 103, suitable for structural steels, plain cast steels and free cutting steels



    Features:

    Thread Tr: ISO Metric trapezoidal coarse threadThread Tr:   ISO Metric trapezoidal coarse thread

    Profile sketch: 30°Profile sketch:   30°

    Thread standard: DIN 103Thread standard:   DIN 103

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: High speed steel HSSTap material:   High speed steel HSS

    Tap standard: NAREXTap standard:   NAREX

    Thread tolerance: ISO - 7HThread tolerance:   ISO - 7H

    Chamfer: Length 0,7 l2Chamfer:   Length 0,7 l2

    Hole type: Through hole (thread length L < 0,8xd1)Hole type:   Through hole (thread length L < 0,8xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm22-6
    P2.1Free-cutting steels <800N/mm22-6
    K6.1Grey cast iron1-3
    N8.2Aluminium alloysSi<10%2-10
    N10.1Short chipping copper alloys2-6



    Dimensions:

    5706: kreslenka
    d1Ptoll1l2d2ahole
    Tr 1037H140846,357,5
    Tr 1237H1408486,39,25
    Tr 1437H1408410811,25
    Tr 1647H22014211,2912,25
    Tr 1847H22014212,51014,25
    Tr 2047H2201421411,216,25
    Tr 2257H2601631612,517,25
    Tr 2557H260163181420,25
    Tr 2857H26016322,41823,25
    Tr 3267H310195252026,25
    Tr 3667H3101952822,430,25
    Tr 4067H36022731,52534,5
    Tr 4587H44027535,52837,5
    Tr 5087H4402754031,542,5
    Tr 5687H4602824535,544,5

    Additional parameters

    Category: Nut taps
    Coating: -
    Machined material: Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
    Product line: NAREX Zdanice Product Line
    Standard: NAREX Standard
    Thread type: Metric trapezoidal thread
    Tolerance: 7H
