9960 - Threading tool sets

Code: 041139445506000
€207,08 €171,14 excl. VAT

Choose variant

Catalogue number: 9960

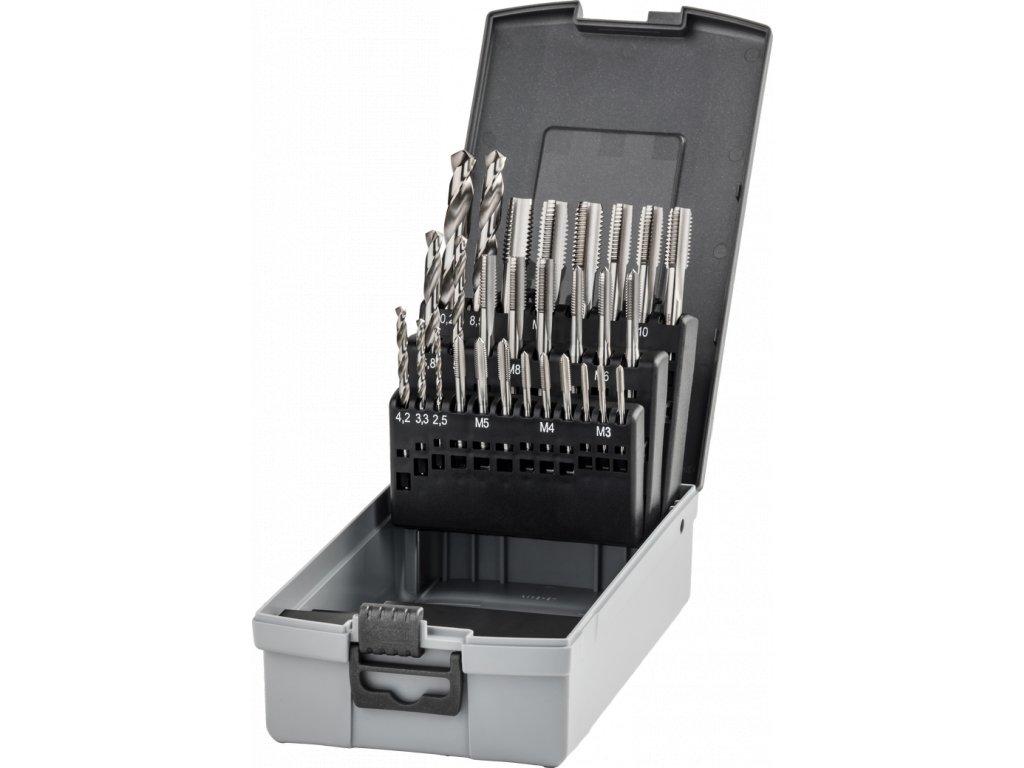

C-N-S Set of hand taps cat. No. 0200 M3, M4, M5, M6, M8, M10, M12 + core drills DIN 338 2,5, 3,3, 4,2, 5,0, 6,8, 8,5, 10,2



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: High speed steel HSSTap material:   High speed steel HSS

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: x
Currently unavailable | 041139445506000
€207,08
€171,14 excl. VAT

Product detailed description

Catalogue number: 9960

C-N-S Set of hand taps cat. No. 0200 M3, M4, M5, M6, M8, M10, M12 + core drills DIN 338 2,5, 3,3, 4,2, 5,0, 6,8, 8,5, 10,2



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: High speed steel HSSTap material:   High speed steel HSS

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm2
P1.2Plain cast steels <500N/mm2
P2.1Free-cutting steels <800N/mm2
P2.2Structural steels <800N/mm2
P2.3Plain cast steels <800N/mm2
K6.1Grey cast iron
K6.2Spher. graphite and mall. cast iron
N8.1Aluminium alloysSi<10%
N8.2Aluminium alloysSi<10%
N10.1Short chipping copper alloys

Additional parameters

Category: Threading tool sets
Coating: -
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: * *
Thread type: Metric ISO Thread
Tolerance: *
